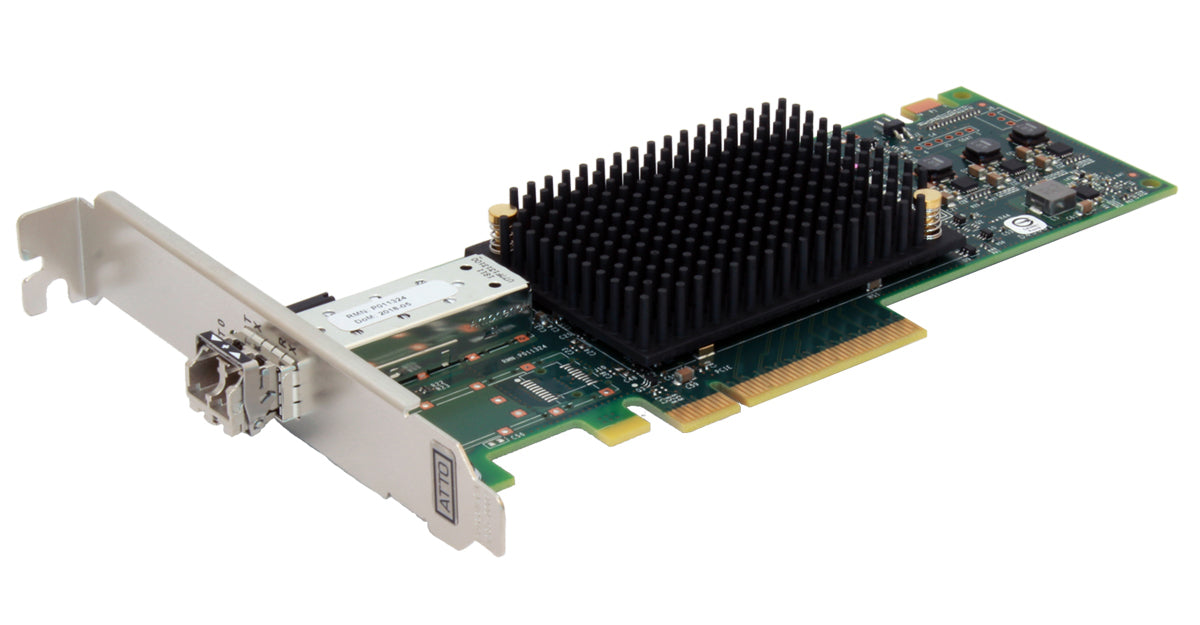

16Gb Celerity (model 161P) Single-Port Fibre Channel Adapter (SFP included)

CTFC-161P-000

The ATTO Celerity FC-161P provides basic switch connectivity for time-tested 16Gb/s Fibre Channel SAN installations.  Delivering up to 3,200 MB/s per channel in a single PCIe expansion slot, it is well-suited for high performance computing, virtualization, and other IOP-driven environments typically found in enterprise Fibre Channel SANs

Technical Features

• Single-channel 16-Gigabit Gen 6 Fibre Channel HBA
• 3,200MB/s throughput per port in full-duplex mode
• Backward compatible with 8Gb/s and 4Gb/s Fibre Channel Products
• Includes one 16Gb/s LC SFP+ transceivers

Bus Specifications

• x8 PCI Express 3.0 host interface

External Connectivity

• Full height brackets

Operating System Support

• Windows®, Windows Server®, Linux®, illumos, VMware®, FreeBSD, macOS® driver support

Dimensions

• Length 6.595”, Height 2.709”

Operating Power (Typical)

• 9.6W

Operating Power (Typical)

• Hardware Environment:   0-55° C Temperature /  10 -90% non-condensing Humidity
• Storage Environment: 40°-70°C (-40°-157°F) Temperature /  5 -95% non-condensing Humidity

Compliance

• RoHS (meet EU and China standards)
• Storage Environment: 40°-70°C (-40°-157°F) Temperature /  5 -95% non-condensing Humidity

Warranty

• 3-year standard warranty

• Extended warranty plans available for purchase


All finished good 161P SKUs include: ATTO Celerity Fibre Channel adapter, (1) LC SFP+ optical module, low profile bracket, ATTO corporate brochure, getting started guide
